勝手に消灯しないトイレの自動照明

Last Updated on 2026-07-05 by researcher

以前に作ったトイレ照明用のセンサーが５年ほど経過したところでWiFi不調により誤動作するようになってしまった。

ちなみに、今までESP8266/32で作ってきたものは結果として数年程度の運用で廃棄したものがほとんど。なので、もう実運用で使う気にはなれない．．．

Raspberry Pi Zero 2Wでも数年程度の運用でWiFiに不具合が出たものが複数あったりしてWiFiの安定性や耐久性についてはあまり芳しくないようだが内臓WiFiが壊れたとしてもUSBのWiFiアダプターで代用できるため故障しても簡単に治せる。ということでオーバースペックではあるが安定性や耐久性を考慮しRaspberry Pi Zero 2Wで作り直してみた。

今回も汎用LEDによる光センサーにしたかったがGPIOの入力インピーダンスの関係で外付け回路なしでは厳しそうだったため入手しやすく安価なGY-302(BH1750)に変更し、人を検出するために使用していた赤外線距離センサーが高価かつ入手性も悪いため下記投稿の自作の赤外線近接センサーに変更した。

近接センサーをリモコンの赤外線LEDと受光ユニットで作る

自作の赤外線近接センサーは入手性の良い安い汎用部品で作れるし赤外線LEDの発光強度にもよるが赤外線反射率の高い物体なら１メートル程度離れていても検出できて照明の光でも誤動作しない。

なお、トイレの部屋の間取りや設置物の関係で人がいなくても近接センサーがオンしてしまうときはR2(220Ω)を470Ωなどより大きな抵抗にする必要があるので設定等で感度調整できるように改良したいところではある。

ついでに．．．トイレは毎日必ず使うものなのでその回数の記録とか一人暮らしの人のための見守り機能への対応などもいいかもしれない。

実験中、Raspberry PiのGPIOから赤外線LEDを直接駆動すると他のGPIOの入力が誤動作してしまうことがあったので2N7000経由で駆動するようにしてみた。

2N7000に発振防止用のゲート抵抗を入れるかどうかでしばし悩んだが抵抗無しでも発振することなく綺麗な波形が確認できたことや2N7000の入出力容量が小さいこととGPIOの出力インピーダンスが比較的高めなため抵抗は省略してしまったが．．．発振防止用の抵抗については理想駆動回路上での机上の理論だけが蔓延してるような気がするものの．．．ググったりＡＩに聞いたりするかぎり必要だと言う意見ばかりなので盲信者からのツッコミを避けるためのお守りとしても発振防止用の抵抗は入れておいたほうがいいのかもしれない。v(-_-;)

【設置】

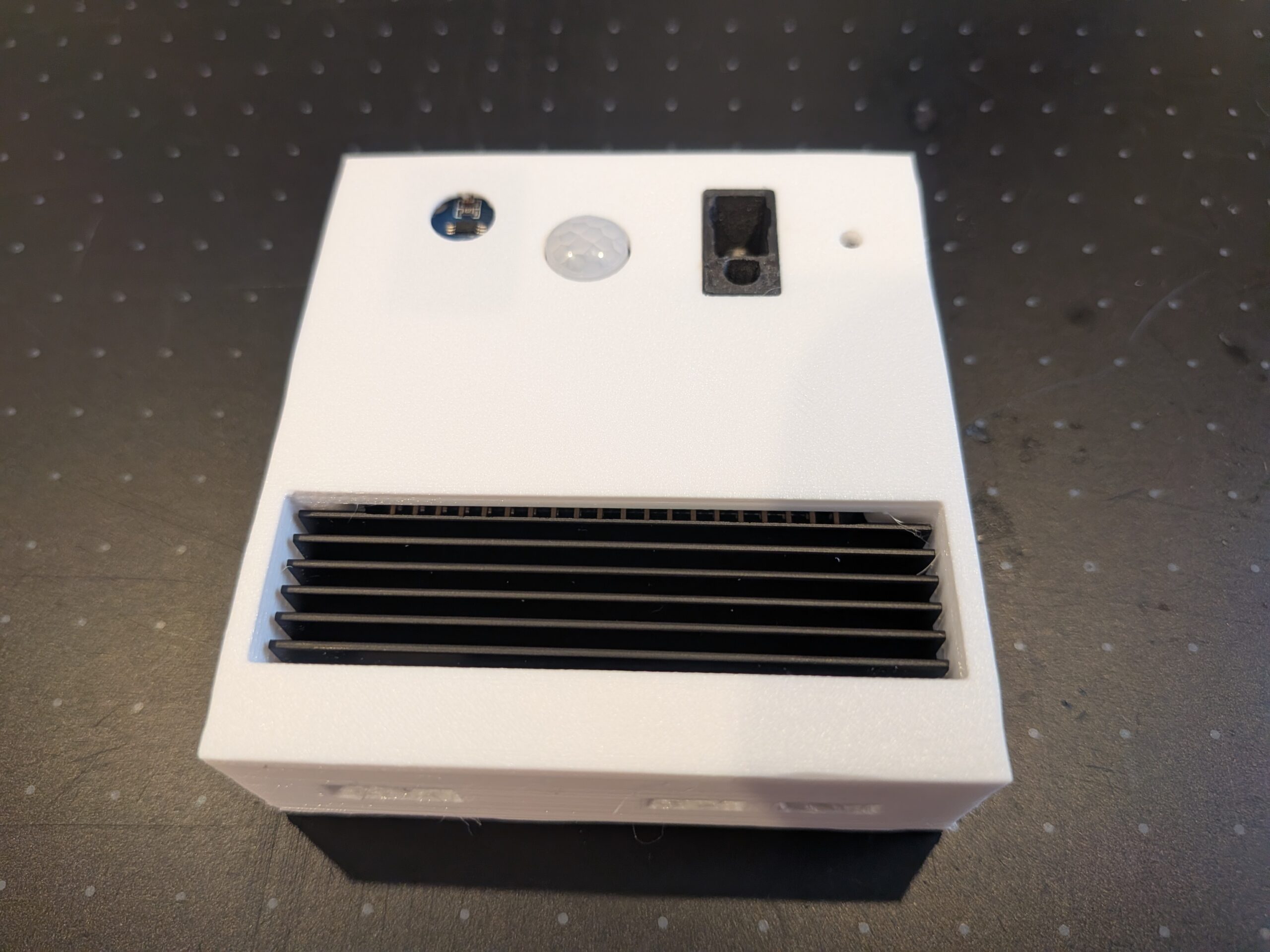

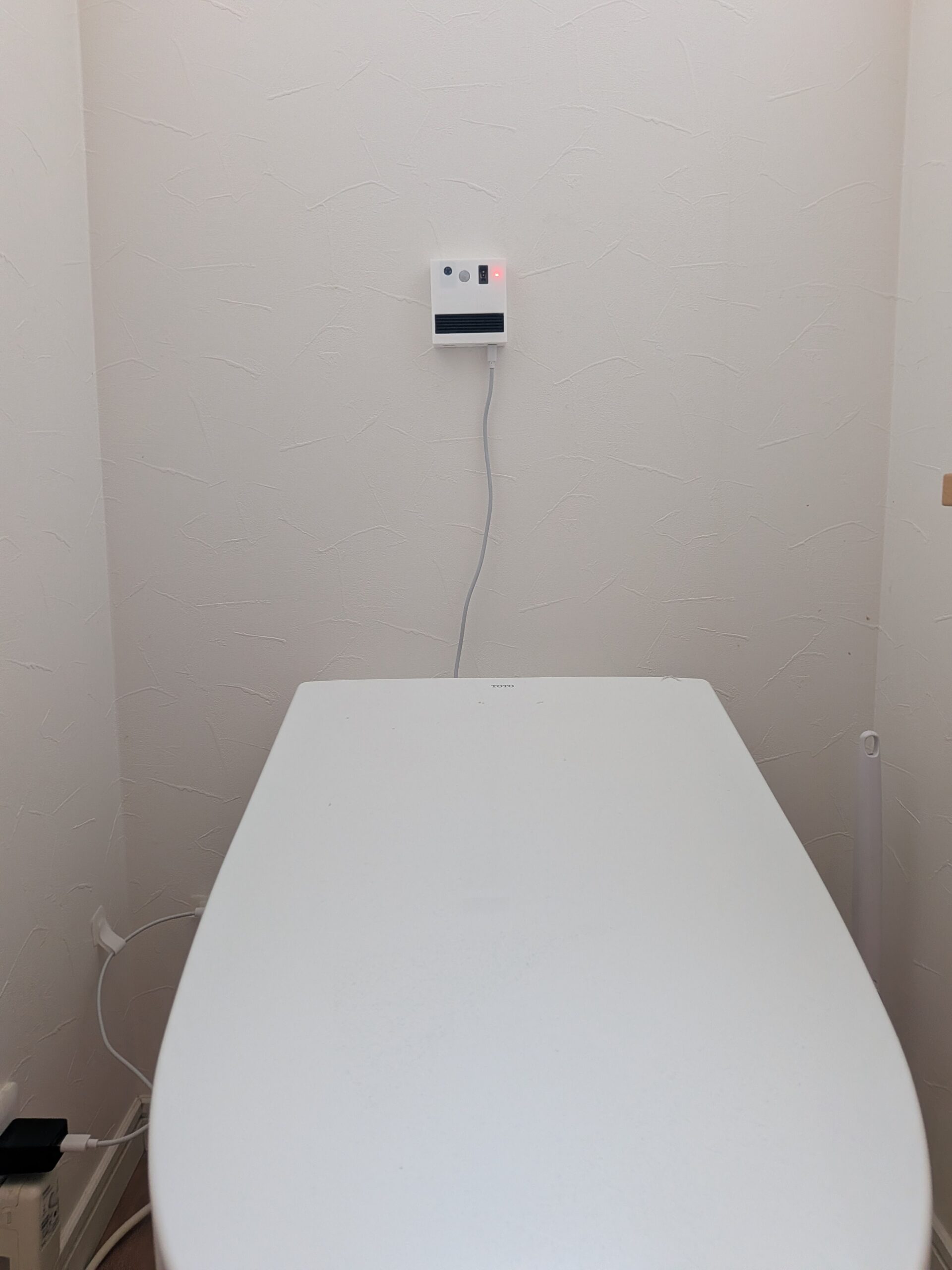

以前の投稿では座ってる人を検出するために便器の横に設置していたが、センサー部を入口側に向けるようにトイレ奥の壁の中央付近に両面テープ等で貼り付けるのがお勧め。

便座のフタが開いてるときだけセンサーが隠れるように設置すると近接センサーがフタの開閉に反応しフタが開いてるときは消灯しなくなるので何かと便利。自動開閉するトイレにはお勧めの設置方法であるがフタが開くことで環境光センサーの光量が低下するためフタが開いてるときの照度で閾値(lux_threshold)を設定する必要がある。

トイレの照明は、TP-LINKのL510EというLED電球がお勧め。リモート操作＆明るさの調整＆点灯時に徐々に明るくなど夜中の目にもやさしい機能があってお手頃価格かつアマゾン等で普通に購入できる。

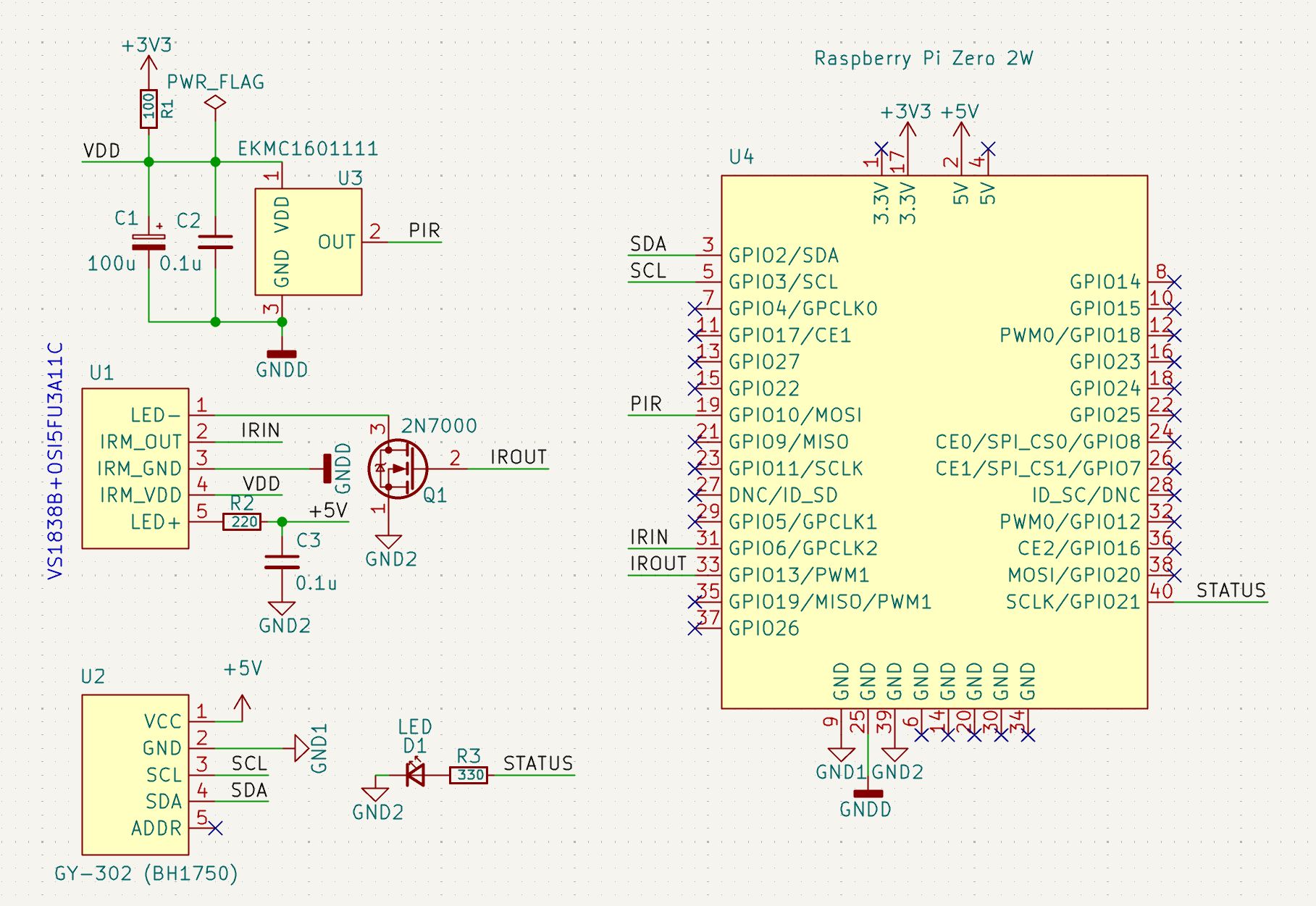

【回路図】

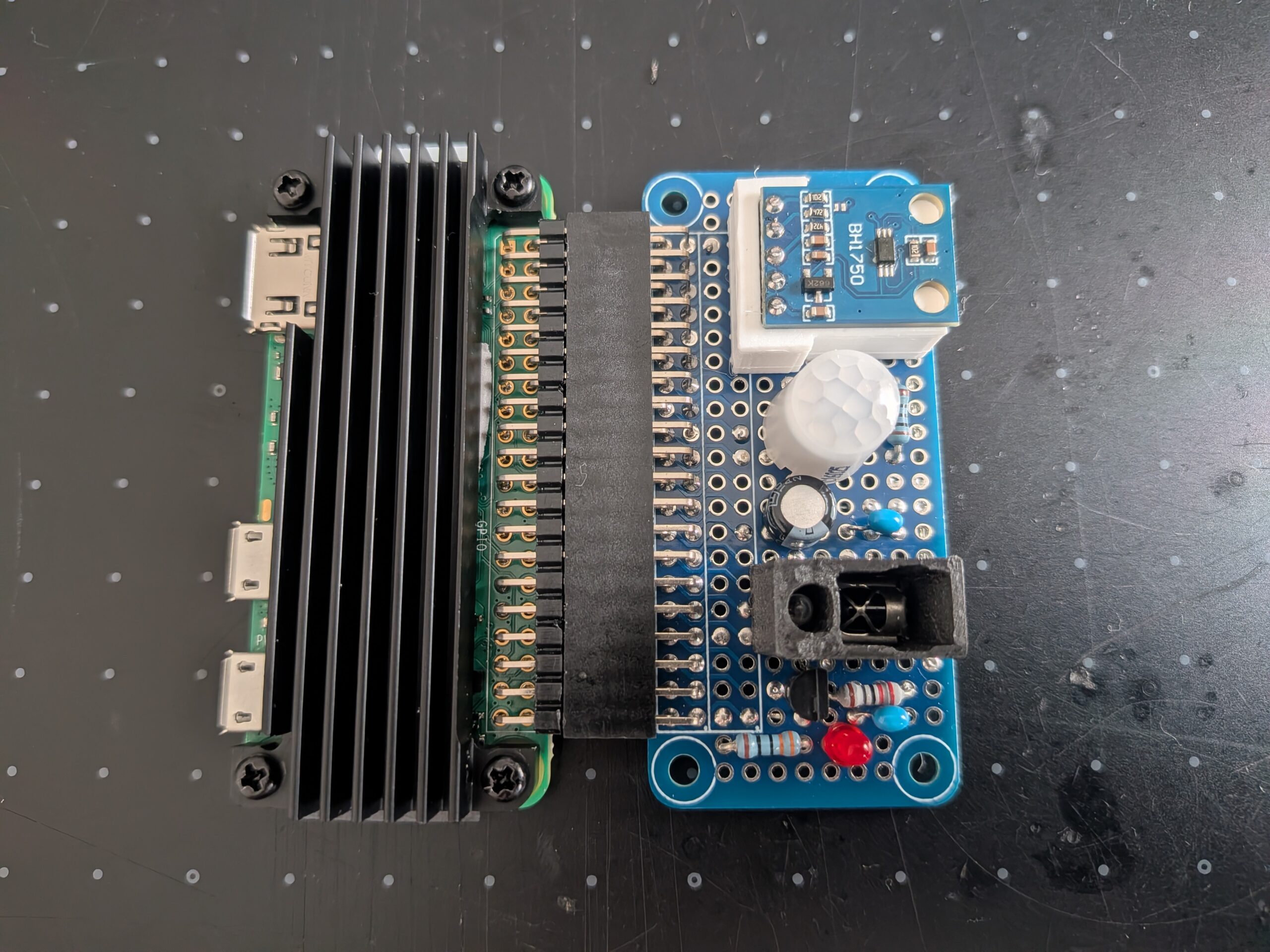

【完成した基板】

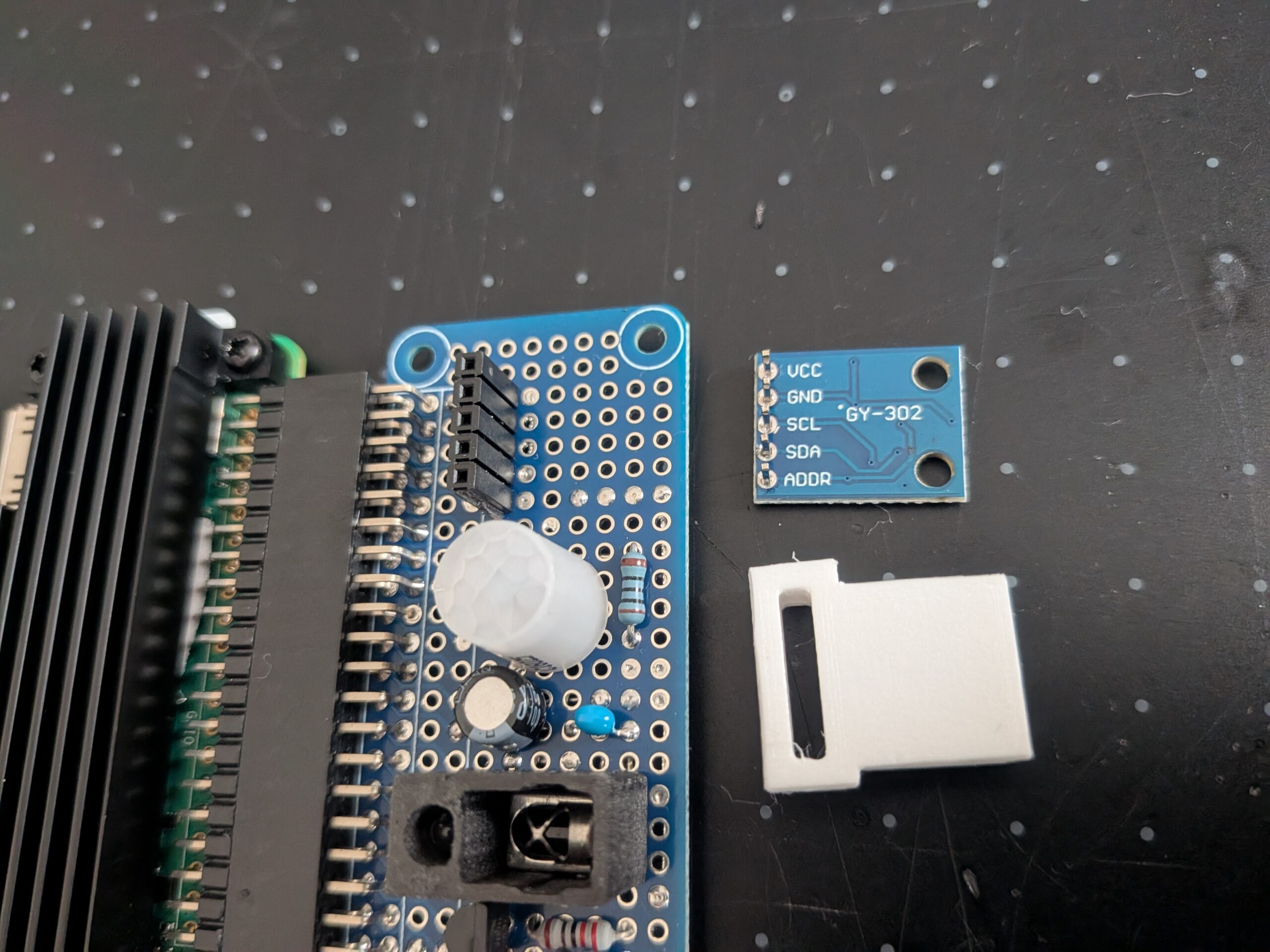

【アマゾンで購入した部品】
オーディオファン赤外線センサー IR受信モジュールリモコン受光部など電子工作 8個セット \733

5個 GY-302 光強度センサーモジュール BH1750FVI BH1750 3V-5V デュポンケーブル30ピン付き for Arduino AVR用 [\999]

Raspberry Pi Zero/Zero W プロトタイプ基板 [\346]

Geekworm Raspberry Pi Zero 2 W ヒートシンク、10mmアルミ合金ヒートシンク (C296) [\999]

※その他の部品は秋月電子で購入。

【Raspberry Piの設定】
1. I2Cを有効化する。

sudo raspi-config
  -> 3 Interface Options
    -> I5 I2C
      -> <Yes>

sudo raspi-config

-> 3 Interface Options

-> I5 I2C

-> <Yes>

2. I2Cの通信速度の設定

/boot/firmware/config.txt or /boot/config.txt

dtparam=i2c_arm=on,i2c_arm_baudrate=400000

/boot/firmware/config.txt or /boot/config.txt

dtparam=i2c_arm=on,i2c_arm_baudrate=400000

【ダウンロード(必要なソース一式)】
wclight.zip

【必要なライブラリ(上記ダウンロードに含まれている)】
Raspberry PiでFANをPWM制御する。(自作ライブラリ版)

【必要なコマンド】
TP-LINK Tapo P105/P110M のKlapプロトコル対応版 (Windows/Linux)

【コンパイル】

#!/bin/sh

gcc wclight.cpp rpio.cpp bcm_host.c -o wclight -lstdc++

#!/bin/sh

gcc wclight.cpp rpio.cpp bcm_host.c -o wclight -lstdc++

【インストール】

#!/bin/sh

INSTALL_DIR=$(cd $(dirname $0) && pwd)

PROGRAM_NAME=wclight
PROGRAM_PATH=${INSTALL_DIR}/${PROGRAM_NAME}
PROGRAM_OPTS=""
SERVICE_NAME=${PROGRAM_NAME}
SERVICE_PATH=/etc/systemd/system/${SERVICE_NAME}.service

if [ -f ${SERVICE_PATH} ]; then
  systemctl stop ${SERVICE_NAME}
  systemctl disable ${SERVICE_NAME}
fi

echo "[Unit]" >${SERVICE_PATH}
echo "Description=Toilet Light Controller" >>${SERVICE_PATH}
echo "After=local-fs.target" >>${SERVICE_PATH}
echo "ConditionPathExists=${INSTALL_DIR}" >>${SERVICE_PATH}
echo >>${SERVICE_PATH}
echo "[Service]" >>${SERVICE_PATH}
echo "ExecStart=${PROGRAM_PATH} ${PROGRAM_OPTS}" >>${SERVICE_PATH}
echo "Restart=always" >>${SERVICE_PATH}
echo "Type=simple" >>${SERVICE_PATH}
echo >>${SERVICE_PATH}
echo "[Install]" >>${SERVICE_PATH}
echo "WantedBy=multi-user.target" >>${SERVICE_PATH}

systemctl daemon-reload
systemctl enable ${SERVICE_NAME}
systemctl start ${SERVICE_NAME}
systemctl status ${SERVICE_NAME}

#!/bin/sh

INSTALL_DIR=$(cd $(dirname $0) && pwd)

PROGRAM_NAME=wclight

PROGRAM_PATH=${INSTALL_DIR}/${PROGRAM_NAME}

PROGRAM_OPTS=""

SERVICE_NAME=${PROGRAM_NAME}

SERVICE_PATH=/etc/systemd/system/${SERVICE_NAME}.service

if [ -f ${SERVICE_PATH} ]; then

systemctl stop ${SERVICE_NAME}

systemctl disable ${SERVICE_NAME}

echo "[Unit]" >${SERVICE_PATH}

echo "Description=Toilet Light Controller" >>${SERVICE_PATH}

echo "After=local-fs.target" >>${SERVICE_PATH}

echo "ConditionPathExists=${INSTALL_DIR}" >>${SERVICE_PATH}

echo >>${SERVICE_PATH}

echo "[Service]" >>${SERVICE_PATH}

echo "ExecStart=${PROGRAM_PATH} ${PROGRAM_OPTS}" >>${SERVICE_PATH}

echo "Restart=always" >>${SERVICE_PATH}

echo "Type=simple" >>${SERVICE_PATH}

echo >>${SERVICE_PATH}

echo "[Install]" >>${SERVICE_PATH}

echo "WantedBy=multi-user.target" >>${SERVICE_PATH}

systemctl daemon-reload

systemctl enable ${SERVICE_NAME}

systemctl start ${SERVICE_NAME}

systemctl status ${SERVICE_NAME}

【照明制御スクリプト (tapo2用)】

#!/bin/bash

TAPO=/*****/tapo2
DEVICE=192.168.XXX.XXX
USER=*************
PSWD=*************

$TAPO $DEVICE $USER $PSWD $1
echo [$?] $TAPO $DEVICE $1

#!/bin/bash

TAPO=/*****/tapo2

DEVICE=192.168.XXX.XXX

USER=*************

PSWD=*************

$TAPO $DEVICE $USER $PSWD $1

echo [$?] $TAPO $DEVICE $1

【コンフィグ】

lux_threshold=15
delay_light_off=30
light_ctrl_cycle=10

lux_threshold=15

delay_light_off=30

light_ctrl_cycle=10

【ソースコード】

/*
  wclight.cpp - Toilet Light Controller

  Copyright (c) 2026 Sasapea's Lab. All right reserved.

  This program is free software: you can redistribute it and/or
  modify it under the terms of the GNU General Public License as
  published by the Free Software Foundation, either version 3 of
  the License, or at your option) any later version.

  This program is distributed in the hope that it will be useful,
  but WITHOUT ANY WARRANTY; without even the implied warranty of
  MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.
  See the GNU General Public License for more details.

  You should have received a copy of the GNU General Public License
  along with this program. If not, see <https://www.gnu.org/licenses/>.
*/
#include <stdio.h>
#include <stdlib.h>
#include <stdint.h>
#include <stdbool.h>
#include <string.h>
#include <errno.h>
#include <time.h>
#include <unistd.h>
#include <sys/stat.h>
#include "rpio.h"
#include "irps.h"
#include "twi.h"
#include "bh1750.h"
#include "state.h"

#define PIN_PIR    10
#define PIN_STATUS 21
#define PIN_IRINP  6
#define PIN_IROUT  13

#define LUX_THRESHOLD    15   /* lux */
#define DELAY_LIGHT_OFF  30   /* sec */
#define LIGHT_CTRL_CYCLE 10   /* sec */
#define INTERVAL         300  /* ms  */

static TWI    twi;
static BH1750 als((IOBUS*)&twi);
static IRPS   ps(PIN_IRINP, PIN_IROUT);
static int    lux_threshold    = LUX_THRESHOLD;
static int    delay_light_off  = DELAY_LIGHT_OFF  * 1000;
static int    light_ctrl_cycle = LIGHT_CTRL_CYCLE * 1000;
static char   conf_path[1024];
static char   script[1024];
static char*  script_arg;

void config(const char* filepath)
{
  static struct timespec last;
  struct stat fs;
  if (stat(filepath, &fs) == 0)
  {
    if (memcmp(&last, &fs.st_mtim, sizeof(fs.st_mtim)) != 0)
    {
      last = fs.st_mtim;
      FILE* fp;
      if ((fp = fopen(filepath, "r")) != NULL)
      {
        char line[256];
        while (fgets(line, sizeof(line), fp) != NULL)
        {
          int len = strlen(line) - 1;
          while ((len > 0) && (line[len] <= ' '))
            line[len--] = 0;
          char* p = strchr(line, '=');
          if (p)
          {
            *p++ = 0;
            if (strcmp(line, "lux_threshold") == 0)
              lux_threshold = atoi(p);
            else if (strcmp(line, "delay_light_off") == 0)
              delay_light_off = atoi(p) * 1000;
            else if (strcmp(line, "light_ctrl_cycle") == 0)
              light_ctrl_cycle = atoi(p) * 1000;
          }
        }
        fclose(fp);
      }
      fprintf(stdout, "lux_threshold    = %d lux\n", lux_threshold);
      fprintf(stdout, "delay_light_off  = %d sec\n", delay_light_off  / 1000);
      fprintf(stdout, "light_ctrl_cycle = %d sec\n", light_ctrl_cycle / 1000);
    }
  }
}

int control(bool on)
{
  snprintf(script_arg, 8, on ? "on" : "off");
  int rv = system(script);
  if (rv)
  {
    fprintf(stdout, "system(\"%s\") = %d\n", script, rv);
    fflush(stdout);
  }
  return rv;
}

void usage(void)
{
  fprintf(stderr, "Toilet Light Controller, Version 1.00\n");
  fprintf(stderr, "Copyright (C) 2026, Sasapea's Lab\n");
  fprintf(stderr, "\n");
  fprintf(stderr, "options: -d device ... I2C device name (\"/dev/i2c-1\")\n");
}

int main(int argc, char **argv)
{
  const char* name = "/dev/i2c-1";
  int rv;

  opterr = 0;
  while ((rv = getopt(argc, argv, "d:")) != -1)
  {
    switch (rv)
    {
      case 'd':
        name = optarg;
        break;
      default:
        usage();
        fprintf(stderr, "\ninvalid option: %c\n", optopt);
        return -1;
    }
  }
  while (optind < argc)
  {
    usage();
    fprintf(stderr, "\ninvalid option: %s\n", argv[optind++]);
    return -1;
  }

  if ((rv = twi.begin(name)) == -1)
    printf("Error: TWI::begin(%s) = %s\n", name, strerror(errno));
  else
  {
    if ((rv = RPIO::begin()) == -1)
      printf("Error: RPIO::begin() = %s\n", strerror(errno));
    else
    {
      /* setup */
      snprintf(conf_path, sizeof(conf_path), "%s.conf", argv[0]);
      script_arg = script
        + snprintf(script, sizeof(script) - 8, "%s.sh ", argv[0]);
      RPIO::pinMode(PIN_PIR, INPUT, PULL_DOWN);
      RPIO::pinMode(PIN_STATUS, OUTPUT);
      ps.begin();
      /* main loop */
      State<bool> psstat(false);
      State<bool> light(false);
      time_t detect = -1;
      time_t swctrl = RPIO::millis() - light_ctrl_cycle;
      struct timespec cycle = RPIO::clock();
      while (1)
      {
        /* Load Config */
        config(conf_path);
        /* PIR Sensor */
        if (RPIO::digitalRead(PIN_PIR))
        {
          /* Ambient Light Sensor */
          int lux = -1;
          if (als.start(BH1750_ONE_TIME_H_RESOLUTION_MODE2))
            lux = als.lux() >> BH1750_FIXED_POINT_NBITS;
          if (lux >= lux_threshold)
            fprintf(stdout, "PIR (%d)\n", lux);
          else
          {
            detect = RPIO::millis();
            if (lux != -1)
              fprintf(stdout, "PIR (%d-)\n", lux);
            else
              fprintf(stdout, "PIR (?)\n");
          }
        }
        /* Proximity Sensor */
        if (detect != -1)
        {
          if (psstat.update(ps.detect()))
            fprintf(stdout, "PS %s\n", psstat.current() ? "ON" : "OFF");
          if (psstat.currnt())
            detect = RPIO::millis();
        }
        /* Auto Light OFF */
        if ((detect != -1) && (RPIO::millis() - detect >= delay_light_off))
          detect = -1;
        /* Status LED Control */
        if (light.update(detect != -1))
        {
          fprintf(stdout, "LIGHT %s\n", light.current() ? "ON" : "OFF");
          RPIO::digitalWrite(PIN_STATUS, light.current() ? HIGH : LOW);
          swctrl = RPIO::millis() - light_ctrl_cycle;
        }
        /* Flush Log Output */
        fflush(stdout);
        /* Light Control */
        if (RPIO::millis() - swctrl >= light_ctrl_cycle)
        {
          swctrl += light_ctrl_cycle;
          control(light.current());
        }
        /* Cycle Delay */
        RPIO::delay(INTERVAL, &cycle);
      }
    }
    twi.end();
  }
  return rv;
}
